Z Setter
Z Axis Setter With Meter Photoelectric Tool Z Axis Zero Setter Zero Setting Gauge Digital Magnetic Z Axis Tool
Description

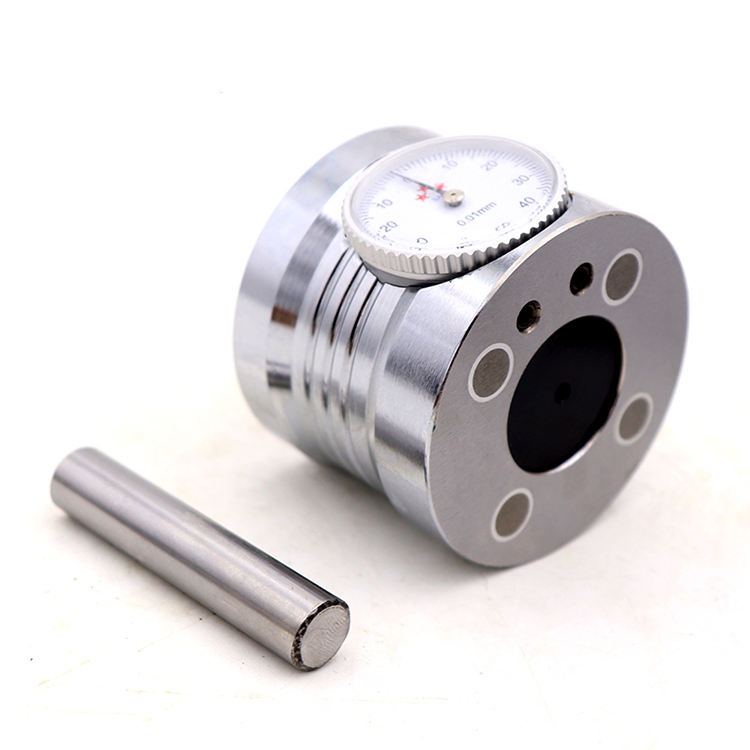

CNC Machine Tool Z Axis Zero Setter Z Setter
Features
1.For setting tool length on machining centers/lathe centers.
2.Setting height:50mm±3μm.
3.Large measuring surface and easy to operate .
4.Low spring force to avoid breakage of small end mill and drill.
5.Easy to be calibrated by a ground parallel or gauge block.
6.Better parallelism,sensitivity,and precision for use.
2.Setting height:50mm±3μm.
3.Large measuring surface and easy to operate .
4.Low spring force to avoid breakage of small end mill and drill.
5.Easy to be calibrated by a ground parallel or gauge block.
6.Better parallelism,sensitivity,and precision for use.
Specification:
- Material: steel
- Product detailed size: upper end diameter 43mm
- lower end diameter 62.5mm
- Setting height :50 +/- 0.005mm
- Range: 2''
- accuracy: 0.001''
- Accuracy and repeatability: .0004"
- Mechanical zero-setting instrument for CNC Machine Centers; Fast and sure establishing of "0" reference point with built in indicator; Positing accuracy and repeatability.
