Tool Holder Locking Devices
High Performance Steel Machine Tool Accessories Cnc Making Parts Tool Holder Locking Devices BT30/BT40/BT50
Description
|
Brand:
|
NBD （OEM, ODM）
|
|
Products Name:
|
BT tool holder locking device
|
|
Material:
|
Aluminum seat cover
|
|
Inspection
|
100% inspection before shipping to ensure the quality
|
|
OEM customization:
|
support
|
|
support non - standard customization.
|
|

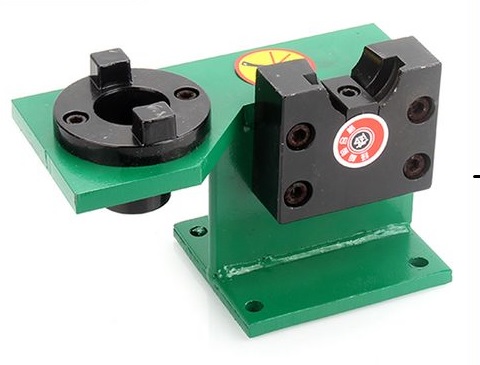

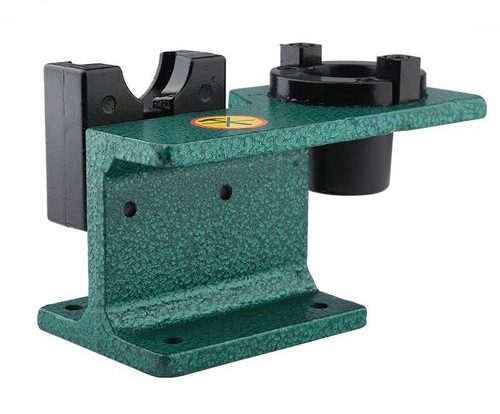

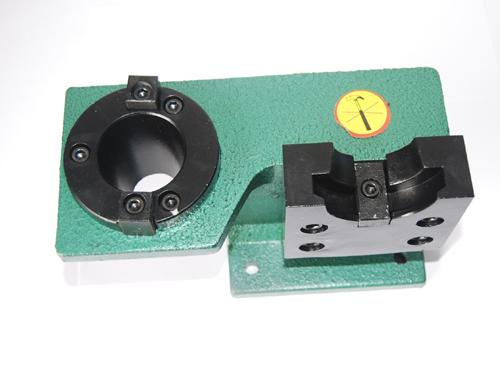

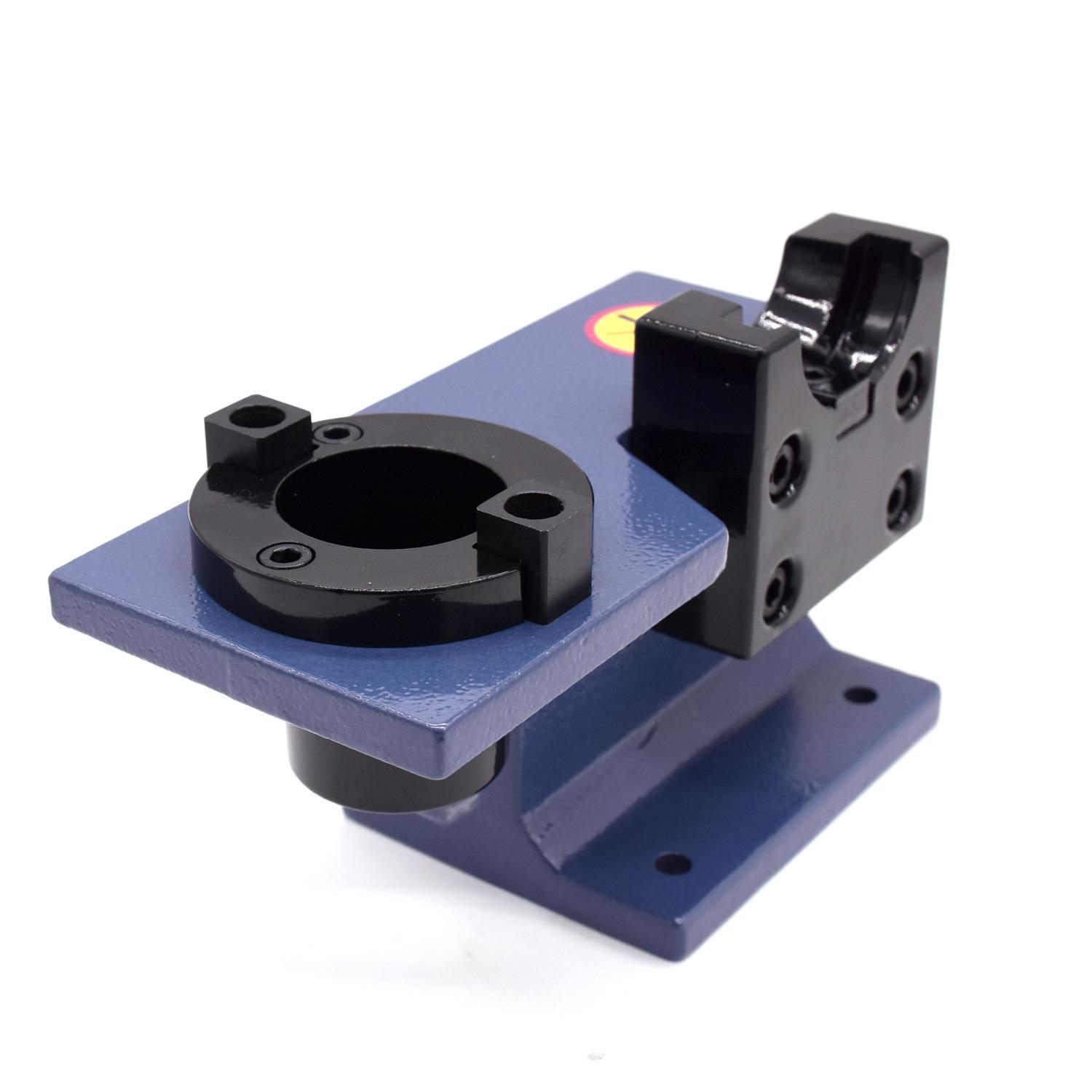

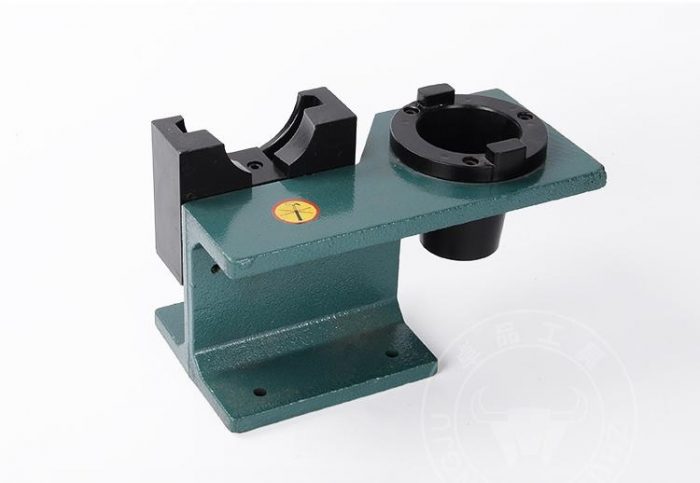

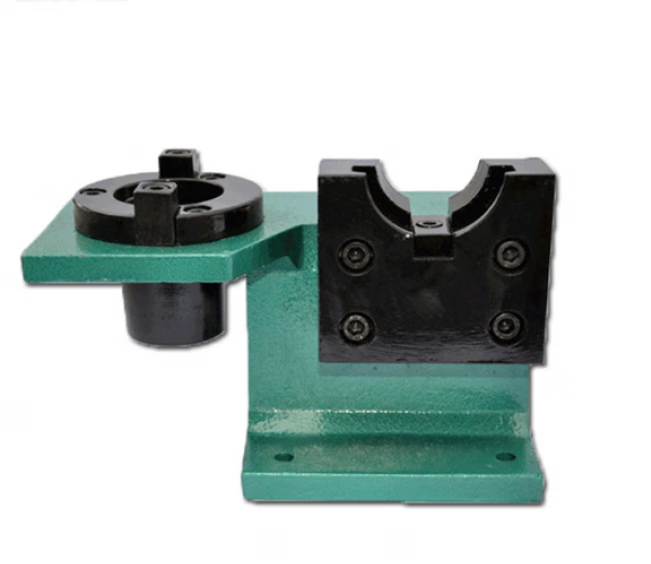

BT Type BT40 BT50 Tool Holder Locking Devices we produce
We produce High Quality BT Type BT40 BT50 Tool Holder Locking Devices with alloyed steel, which can fix the tool holders i different direction. We produce BT30/40/50 type, DIN69871 30/40/50 type and CAT30/40/50 type vertical horizontal tool device.
|
Model
|
Taper of Tool Holder
|
Outsize(mm)
|
Weight(Kg)
|
|
LD-BT30
|
BT30
|
205 X 98.5 X 128
|
3.70
|
|
LD-BT40
|
BT40
|
205 X 98.5 X 128
|
3.80
|
|
LD-BT50
|
BT50
|
275 X 150 X 198
|
11.40
|
|
LD-DT30
|
DIN69871 .30
|
205 X 98.5 X 128
|
3.70
|
|
LD-DT40
|
DIN69871 .40
|
205 X 98.5 X 128
|
3.80
|
|
LD-DT50
|
DIN69871 .50
|
275 X 150 X 198
|
11.40
|
|
LD-CAT30
|
CAT30
|
205 X 98.5 X 128
|
3.70
|
|
LD-CAT40
|
CAT40
|
205 X 98.5 X 128
|
3.80
|
|
LD-CAT50
|
CAT50
|
275 X 150 X 198
|
11.40
|
