spindle test bar:BT ISO BBT HSK

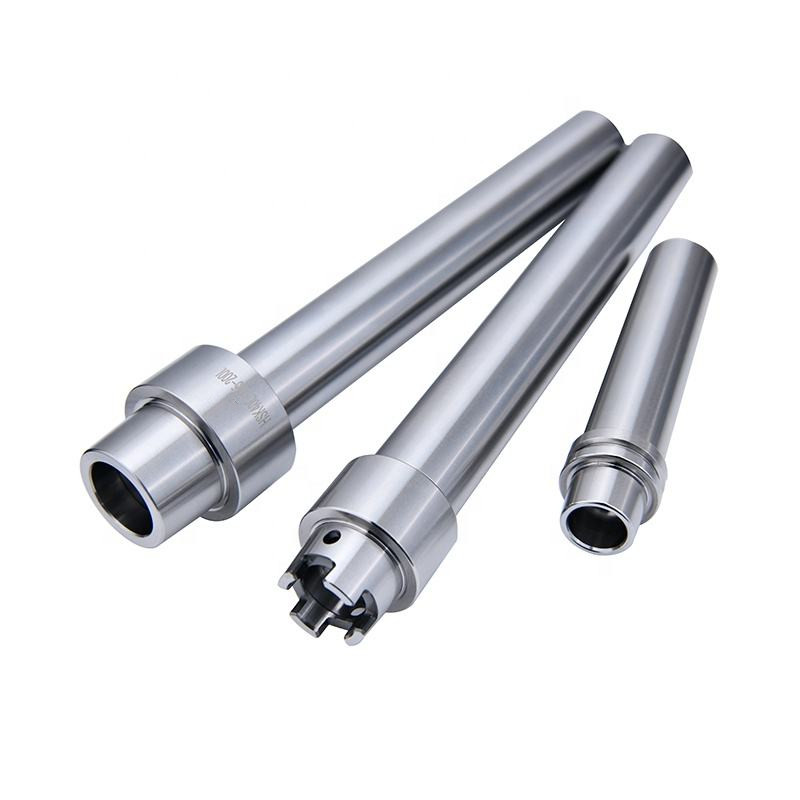

bt cat hsk precision spindle runout test bar bt30 bt40 bt50 hsk63 hsk100
arbor chuck hsk25e hsk32e hsk40e hsk32a hsk40a hsk50a ISO20 ISO25 ISO30 BT30 BT40 BT50 Spindle Precision test bar
Description
Product Description
1.Spindle runout test bars are easy to use and a fast way to verify your machine spindle is running properly. Check them after a machine has been crashed and take the proper steps before you start making scrap parts.

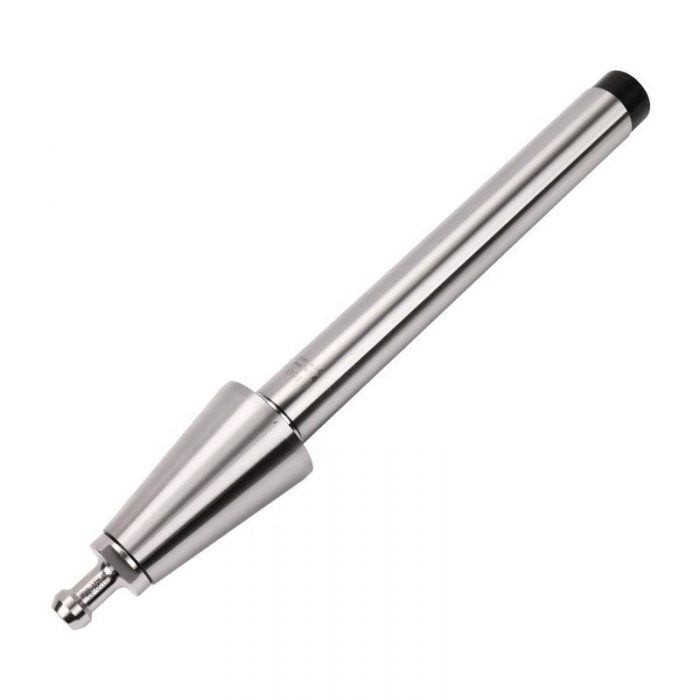

2.Spindle test bars are used in the machine automatic tool changer spindle to detect and benchmark spindle run out. Calibration arbor bars are a master for checking axis alignment with the machine
3.These are surface hardened and not a soft material like many of the cheaper test bars available on the market.
| Preduct name | Spindle test bar |
| Type | BT ISO BBT HSK series spindle test bar |
| Material | 20CrMnTi |
| Precision | 0.002mm |
| Hardness | HRC56-58 |
| Standard | BT-MAS403/ ISO-ISO7388/1 /HSK-DIN69893 |
| Taper ratio | BT-7:24/ISO-7:24/HSK-1:10 |
| Use | Test spindle accuracy |
|
Spindle Runout Gauge
|
Diameter
|
Gauge Length
|
|

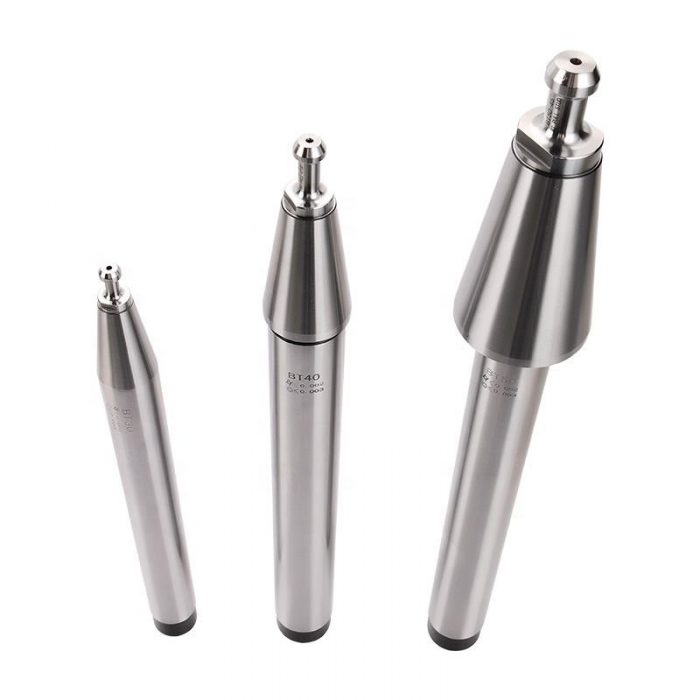

BT30 test bar
|
32
|
300
|
|
BT40 test bar
|
40
|
300
|
|
BT50 test bar
|
40
|
300
|
|
HSK-A/E 63 test bar
|
40
|
346
|
|
HSK-F 63 / HSK-A 50
|
40
|
346
|
|
HSK-A 100 / C 100
|
50
|
330
|
|
CAT40/ANSI40 test bar
|
40
|
300
|
|
CAT50/ANSI50 test bar
|
50
|
300
|
|
DIN69871 30 test bar
|
30
|
300
|
|
DIN69871 40 test bar
|
40
|
300
|
|
DIN69871 50 test bar
|
50
|
320
|
|
MT3 morse taper test bar
|
25
|
250
|
|
MT4 morse taper test bar
|
32
|
300
|
|
MT5 morse taper test bar
|
40
|
300
|
|
ISO30 test bar
|
30
|
180
|
