Shrink fit tool holder BT

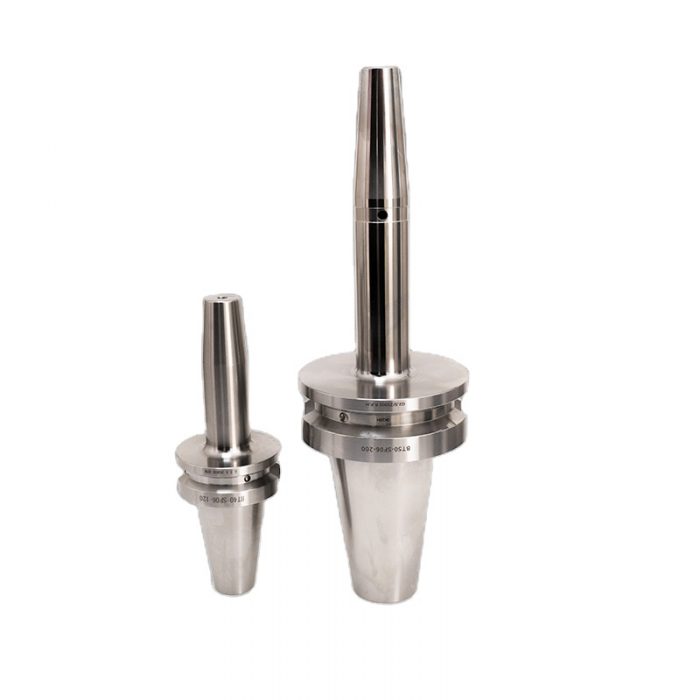

High Precision Tool Holder Shrink Fit BT40 SF06 SF10 SF12 Tool Holder for CNC Center
Description
Shrink Fit Holder take advantage of the principle of thermal expansion and contraction through a special metal material.
First heat the tool holding part to expand it, insert the tool, and lock the tool after the tool holder cools down.The heat shrinking system is a tool clamping method that does not involve any substance between the tool and the tool holder, which can solve the extremely important balance, vibration accuracy and clamping strength problems in high-speed precision machining.
PRODUCT INFORMATION
Material:Heat shrinkable steel
Hardness:HRC55-60
Runout: 0.003 mm
Cooling: AD; AD/B can be made by request.
Balancing:G2.5/25000RPM
Usage:Working with induction shrink machine for mounting straight shank tools.
PRODUCT MODEL
|
Size
|
d
|
D
|
D1
|
L
|
L2
|
L1
|
N
|
G
|
|
BT30-SFS03-80
|
3
|
9
|
13
|
80
|
58
|
-
|
-
|
-
|
|
BT30-SFS04-80
|
4
|
10
|
14
|
80
|
58
|
-
|
-
|
-
|
|
BT30-SFS06-80
|
6
|
12
|
-
|
80
|
58
|
36
|
5
|
M5
|
|
BT30-SFS08-80
|
8
|
14
|
-
|
80
|
58
|
36
|
5
|
M6
|
|
BT30-SFS10-80
|
10
|
16
|
-
|
80
|
58
|
42
|
5
|
M8x1
|
|
BT30-SFS12-80
|
12
|
18
|
-
|
80
|
58
|
47
|
5
|
M10x1
|
|
BT30-SFS16-80
|
16
|
22
|
-
|
80
|
58
|
5o
|
5
|
M12x1
|
|
|
|
|
|
|
|
|
|
|
|
BT40-SFS03-90
|
3
|
9
|
13
|
90
|
63
|
-
|
-
|
-
|
|
BT40-SFS04-90
|
4
|
10
|
14
|
90
|
63
|
-
|
-
|
-
|
|
BT40-SFSO6-90
|
6
|
12
|
18
|
90
|
63
|
36
|
5
|
M5
|
|
BT40-SFS08-90
|
8
|
14
|
20
|
90
|
63
|
36
|
5
|
M6
|
|
BT40-SFS10-90
|
10
|
16
|
22
|
90
|
63
|
42
|
5
|
M8x1
|
|
BT40-SFS12-90
|
12
|
18
|
24
|
90
|
63
|
47
|
5
|
M10x1
|
|
BT40-SFS16-90
|
16
|
22
|
28
|
90
|
63
|
50
|
5
|
M12x1
|
|
|
|
|
|
|
|
|
|
|
|
BT40-SFS03-120
|
3
|
9
|
16
|
120
|
93
|
-
|
-
|
-
|
|
BT40-SFS04-120
|
4
|
10
|
17
|
120
|
93
|
-
|
-
|
-
|
|
BT40-SFSO6-120
|
6
|
12
|
21
|
120
|
93
|
36
|
5
|
M5
|
|
BT40-SFS08-120
|
8
|
14
|
23
|
120
|
93
|
36
|
5
|
M6
|
|
BT40-SFS10-120
|
10
|
16
|
25
|
120
|
93
|
42
|
5
|
M8x1
|
|
BT40-SFS12-120
|
12
|
18
|
27
|
120
|
93
|
47
|
5
|
M10x1
|
|
BT40-SFS16-120
|
16
|
22
|
31
|
120
|
93
|
50
|
5
|
M12x1
|
|
|
|
|
|
|
|
|
|
|
|
BT40-SFS03-160
|
3
|
9
|
19
|
160
|
133
|
-
|
-
|
-
|
|
BT40-SFS04-160
|
4
|
10
|
20
|
160
|
133
|
-
|
-
|
-
|
|
BT40-SFS06-160
|
6
|
12
|
24
|
160
|
133
|
36
|
5
|
M5
|
|
BT4O-SFS08-160
|
8
|
14
|
26
|
160
|
133
|
36
|
5
|
M6
|
|
BT40-SFS10-160
|
10
|
16
|
28
|
160
|
133
|
42
|
5
|
M8x1
|
|
BT40-SFS12-160
|
12
|
18
|
30
|
160
|
133
|
47
|
5
|
M10x1
|
|
BT40-SFS16-160
|
16
|
22
|
34
|
160
|
133
|
50
|
5
|
M12x1
|
