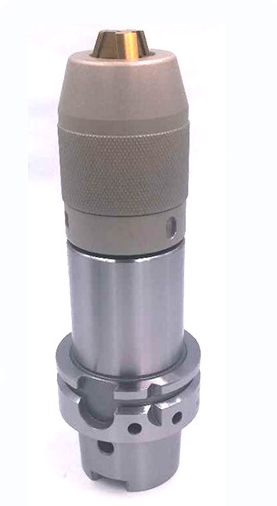

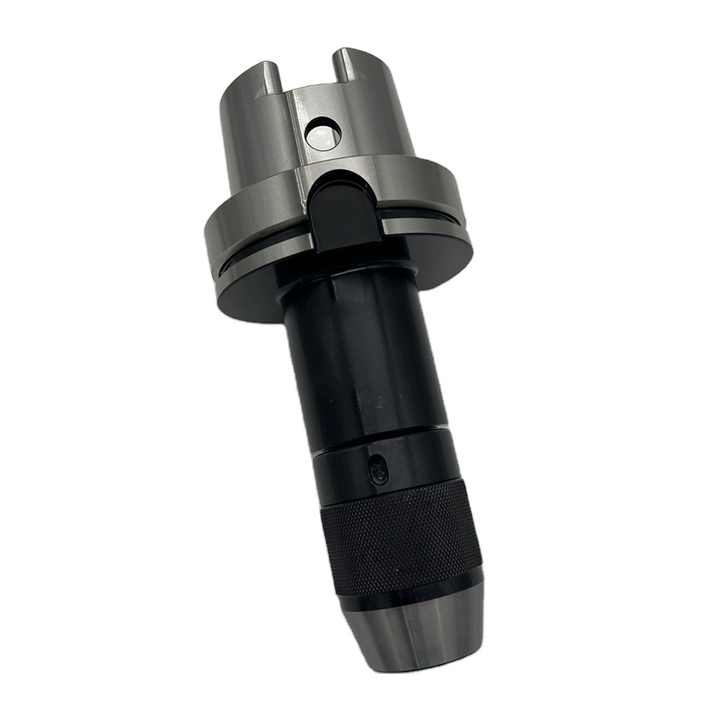

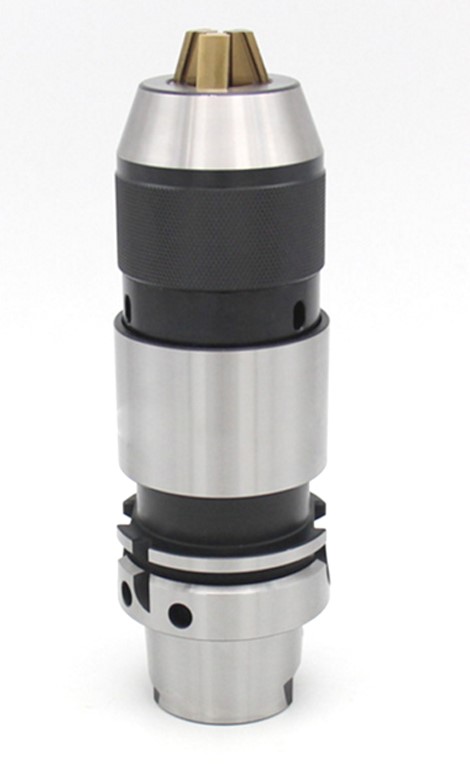

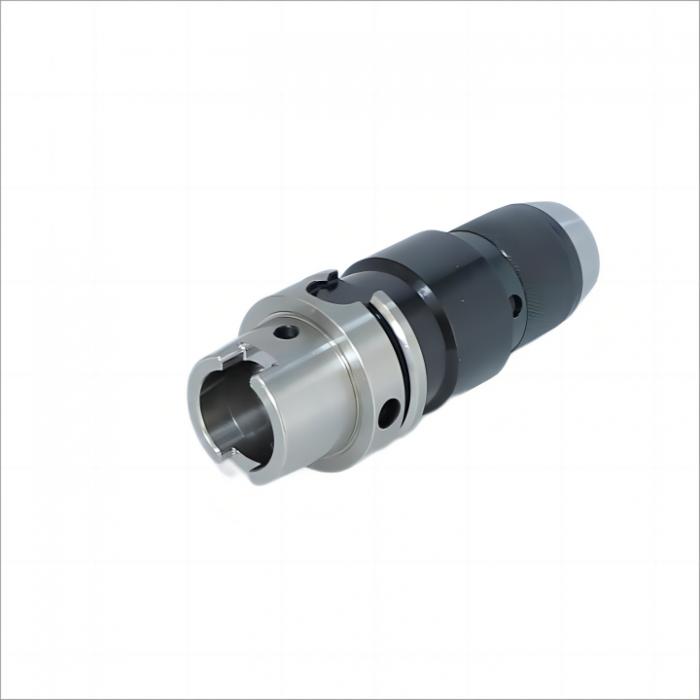

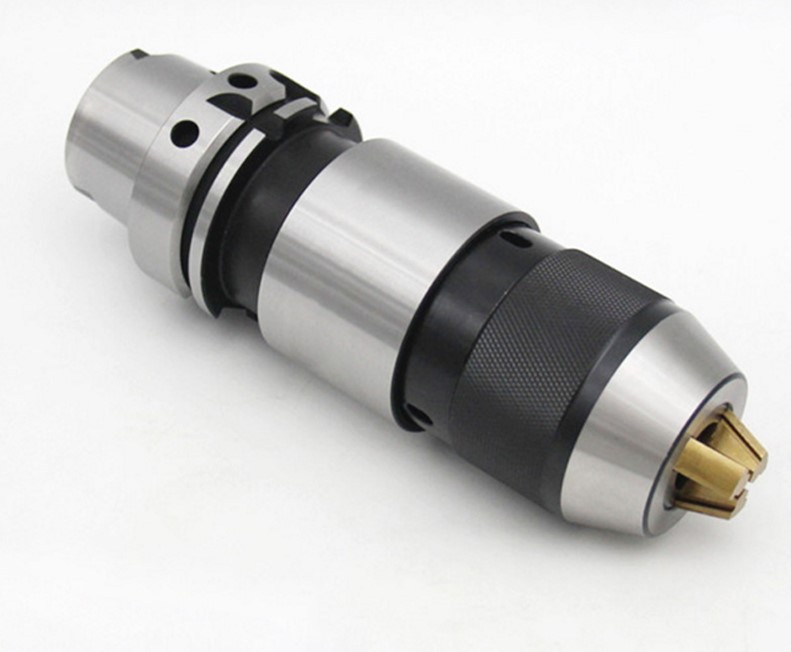

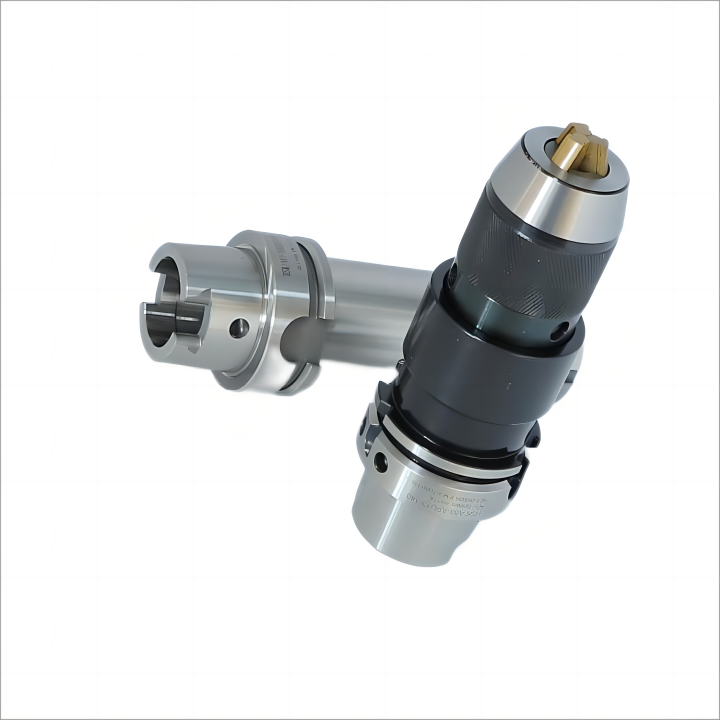

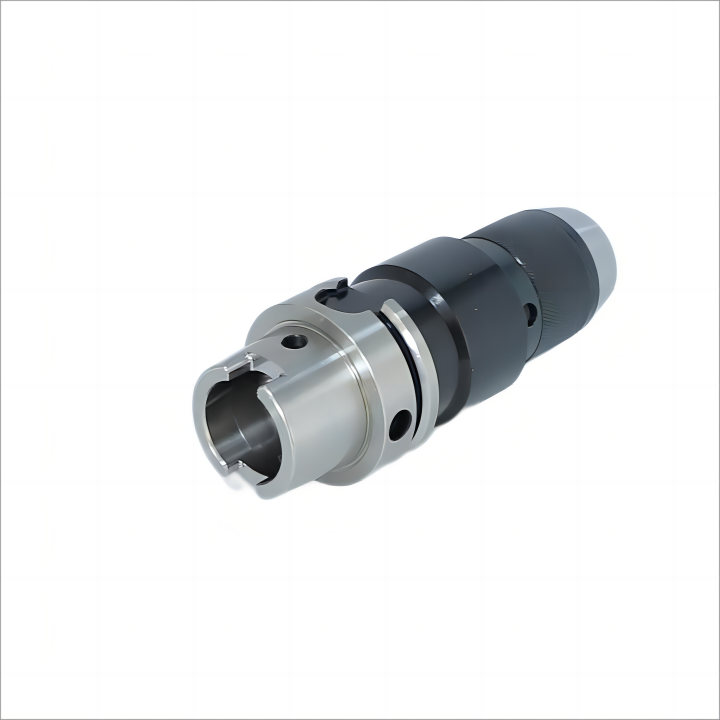

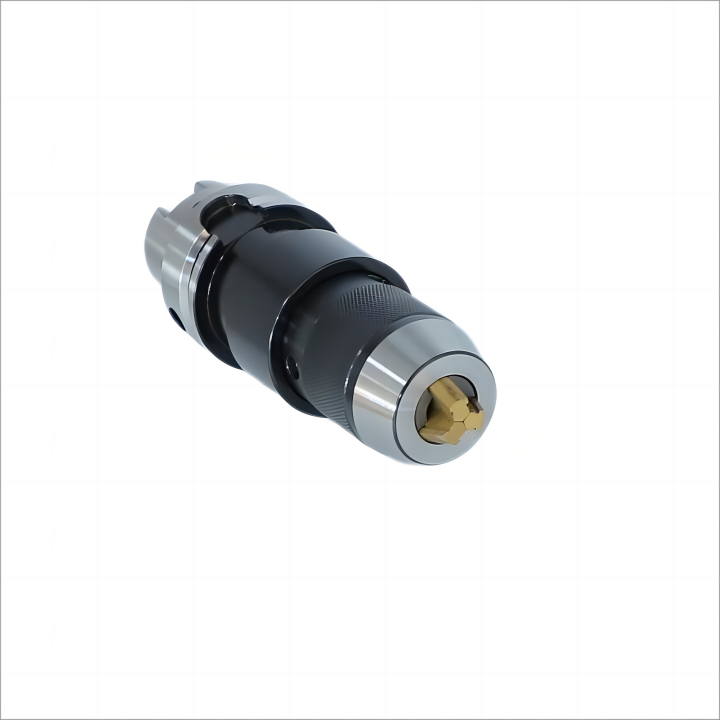

Drill Chuck Holder HSK
Description
Product Description
HSK-APU INTRODUCTION
Material:Alloy steel
Hardness:HRC55-60
Runout: 0.08mm
Cooling: Central cooling is unavailable.
Usage: for clamping tools with straight shank
Product Details
Function: It is mainly used for clamping straight shank drills, and can also be used for clamping straight shank milling cutters, reamers and taps. Advantages and disadvantages: A wide range of clamping, a single model can clamp a variety of drills with different shank diameters, but due to the small clamping force and low clamping accuracy, it is often used for ordinary drills with a diameter below ￠16. Matters needing attention: When clamping, use a special wrench for clamping. If the force is too large during processing, it is easy to cause the three claws to break.

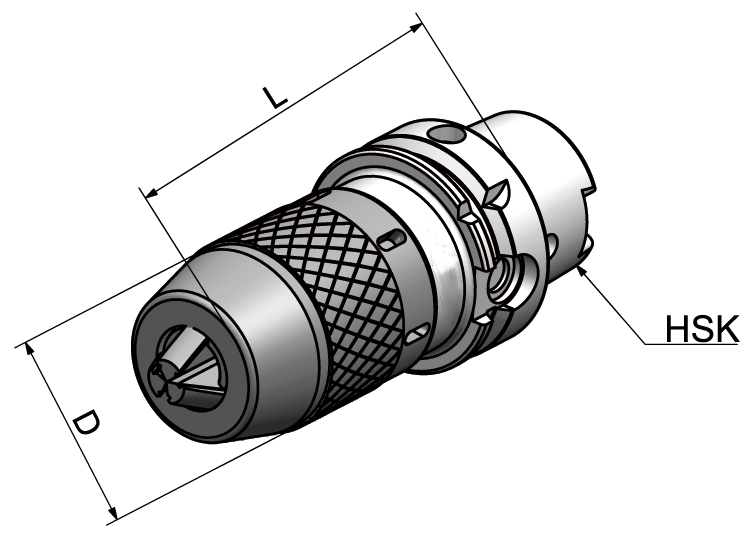

Product Model
|
Size
|
D
|
L
|
l
|
Capacity
|
|
HSK50A-APU08-90
|
38
|
90
|
95
|
1-8
|
|
HSK50A-APU08-120
|
38
|
120
|
130
|
1-8
|
|
HSK50A-APU13-116
|
48
|
116
|
126
|
1-13
|
|
HSK50A-APU16-116
|
53
|
116
|
126
|
3-16
|
|
|
|
|
|
|
|
HSK63A-APU08-85
|
38
|
85
|
95
|
1-8
|
|
HSK63A-APU08-120
|
38
|
120
|
130
|
1-8
|
|
HSK63A-APU13-104
|
48
|
104
|
114
|
1-13
|
|
HSK63A-APU13-150
|
48
|
150
|
160
|
1-13
|
|
HAK63A-APU16-106
|
53
|
106
|
116
|
3-16
|
|
HSK63A-APU16-155
|
53
|
155
|
165
|
3-16
|
|
|
|
|
|
|
|
HSK80A-APU13-109
|
48
|
109
|
119
|
1-13
|
|
HSK80A-APU16-114
|
53
|
114
|
124
|
3-16
|
|
|
|
|
|
|
|
HSK100A-APU13-155
|
48
|
155
|
165
|
1-13
|
|
HSK100A-APU16-160
|
53
|
160
|
170
|
3-16
|
|
HSK100A-APU13-107
|
48
|
107
|
117
|
1-13
|
|
HAK100A-APU16-112
|
53
|
112
|
122
|
3-16
|
