DA COLLETS
cnc machine tools da double angle collets inch size steel collet

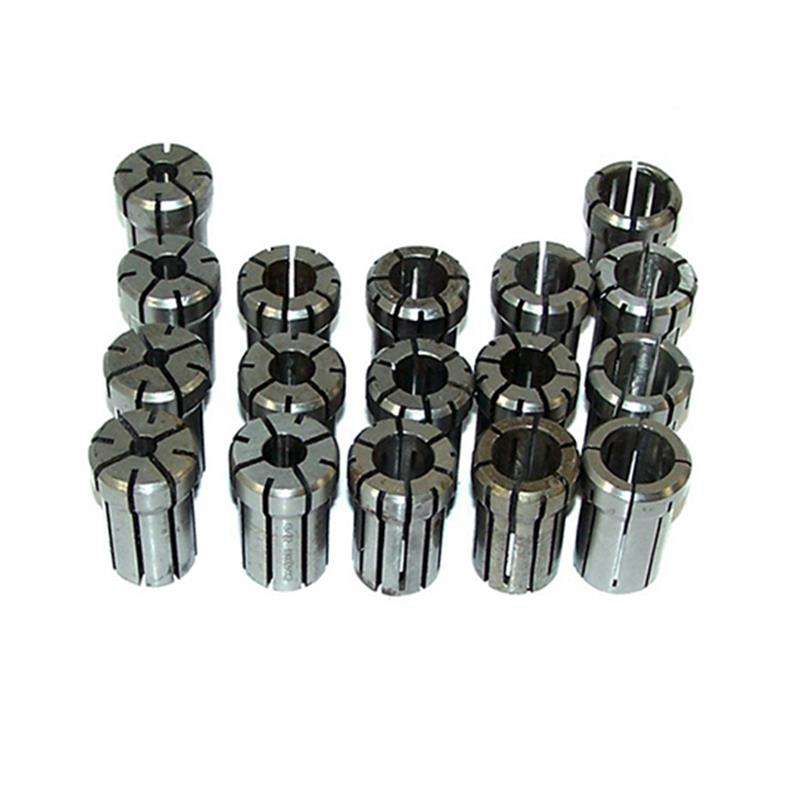

DA Double Angel Collets DA100/DA180/DA200/DA300
Description
cnc machine tools da double angle collets inch size steel collet
Product Description
Da Double Angle Collets Inch Size - Buy Da Collet,Clamping Collets,Hair Spring With Collets Product
| DA double angle collets | ||||
| DA series | D | L | Capacity Range | |
| 300 | .375" | 2.00" | 1/32-1/4 | |
| 200 | .539" | 1.18" | 3/64-25/64 | |
| 100 | .769" | 1.44" | 3/64-9/16 | |
| 180 | 1.035" | 1.62" | 3/64-3/4 | |
| Inch | ||||
| Size | 100DA Model# | 180DA Model# | 200DA Model# | 300DA Model No. |
| 1/32" | --- | --- | --- | 159-3020 |
| 3/64" | 159-0000 | 159-0700 | 159-1140 | 159-3040 |
| 1/16" | 159-0020 | 159-0720 | 159-1160 | 159-3060 |
| 5/64" | 159-0040 | 159-0740 | 159-1180 | 159-3080 |
| 3/32" | 159-0060 | 159-0760 | 159-1200 | 159-3100 |
| 7/64" | 159-0080 | 159-0780 | 159-1220 | 159-3120 |
| 1/8" | 159-0100 | 159-0800 | 159-1240 | 159-3140 |
| 9/64" | 159-0120 | 159-0820 | 159-1260 | 159-3160 |
| 5/32" | 159-0140 | 159-0840 | 159-1280 | 159-3180 |
| 11/64" | 159-0160 | 159-0860 | 159-1300 | 159-3200 |
| 3/16" | 159-0180 | 159-0880 | 159-1320 | 159-3220 |
| 13/64" | 159-0200 | 159-0900 | 159-1340 | 159-3240 |
| 7/32" | 159-0220 | 159-0920 | 159-1360 | 159-3260 |
| 15/64" | 159-0240 | 159-0940 | 159-1380 | 159-3280 |
| 1/4" | 159-0260 | 159-0960 | 159-1400 | 159-3300 |
| 17/64" | 159-0280 | 159-0980 | 159-1420 | |
| 9/32" | 159-0300 | 159-1000 | 159-1440 | |
| 19/64" | 159-0320 | 159-1020 | 159-1460 | |
| 5/16" | 159-0340 | 159-1040 | 159-1480 | |
| 21/64" | 159-0360 | 159-1060 | 159-1500 | |
| 11/32" | 159-0380 | 159-1080 | 159-1520 | |
| 23/64" | 159-0400 | 159-1100 | 159-1540 | |
| 3/8" | 159-0420 | 159-1120 | 159-1560 | |
| 25/64" | 159-0440 | 159-7140 | 159-1580 | |
| 13/32" | 159-0460 | 159-7160 | 159-1600 | |
| 27/64" | 159-0480 | 159-7180 | 159-1620 | |
| 7/16" | 159-0500 | 159-7200 | 159-1640 | |
| 29/64" | 159-0520 | 159-7220 | 159-1660 | |
| 15/32" | 159-0540 | 159-7240 | 159-1680 | |
| 31/64" | 159-0560 | 159-7260 | 159-1700 | |
| 1/2" | 159-0580 | 159-7280 | 159-1720 | |
| 33/64" | 159-0600 | 159-7300 | 159-1740 | |
| 17/32" | 159-0620 | 159-7320 | 159-1760 | |
| 35/64" | 159-0640 | 159-7340 | 159-1780 | |
| 9/16" | 159-0660 | 159-7360 | 159-1800 | |
| 37/64" | 159-7380 | 159-1820 | ||
| 19/32" | 159-7400 | 159-1840 | ||
| 39/64" | 159-7420 | 159-1860 | ||
| 5/8" | 159-7440 | 159-1880 | ||
| 41/64" | 159-7460 | 159-1900 | ||
| 21/32" | 159-7480 | 159-1920 | ||
| 43/64" | 159-7500 | 159-1940 | ||
| 11/16" | 159-7520 | 159-1960 | ||
| 45/64" | 159-7540 | 159-1980 | ||
| 23/32" | 159-7560 | 159-2000 | ||
| 47/64" | 159-7580 | 159-2020 | ||
| 3/4" | 159-7600 | 159-2040 | ||
| 49/64" | 159-7620 | 159-2060 | ||
